Varistor with High Energy MYL-40K Series
Introduce
As a leading electronic component manufacturer in the domestic market, we are pleased to launch the MYL-40K series of surge protection plug-in varistors of disc type. These components are engineered to meet the growing demand for high-quality, reliable surge protection solutions across industries. With a strong focus on performance and reliability, our surge protection disk metal oxide varistors are ideal for customers looking for best-in-class products that deliver exceptional performance.
Introduce
● HIGH PERFORMANCE: The MYL-40K series of surge protected plug-in varistors of disc type are engineered to provide superior surge protection and reliable operation in a variety of applications.
● Superior Quality: Our surge protection components undergo strict quality control measures to ensure high quality and consistent performance, meeting the highest industry standards.
● Wide range of applications: These components are suitable for a variety of applications such as power supplies, automotive electronics, industrial equipment, etc., providing effective surge protection and voltage regulation.
● Customization options: We offer customization options to meet specific customer requirements, ensuring a perfect fit for their application and improving overall system performance.
● Expertise and Experience: With years of experience in manufacturing surge protection components, we have the expertise to deliver best-in-class products that exceed our customers’ expectations.

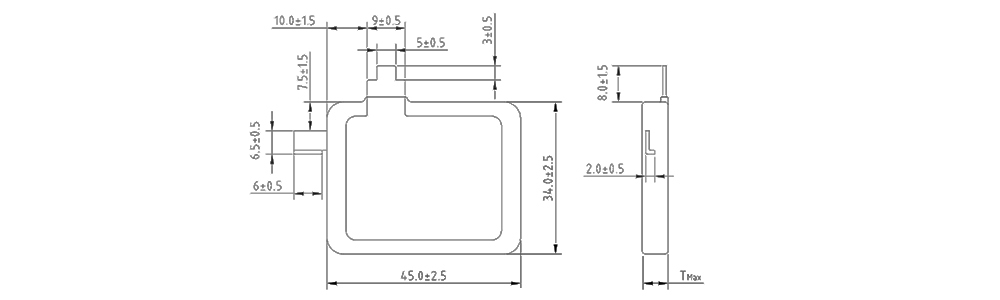

Radial Leaded

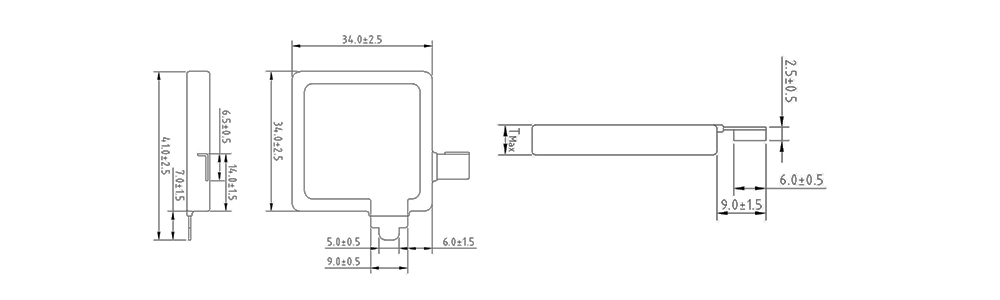

OBO

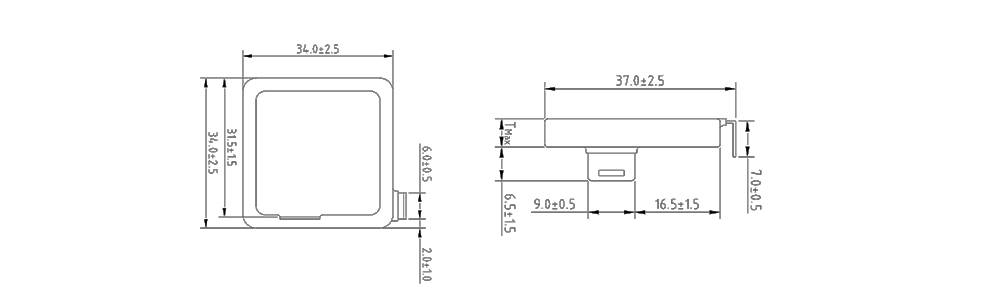

Shield Type-1

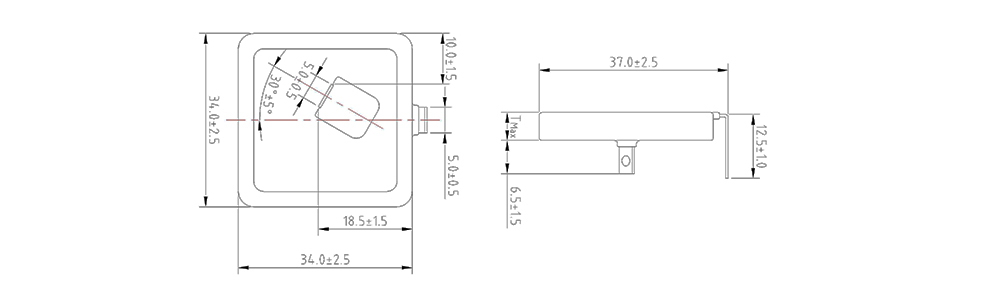

Shield Type-2

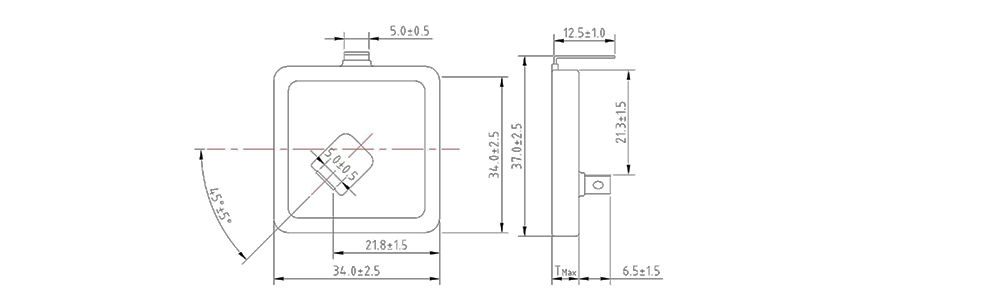

XDE

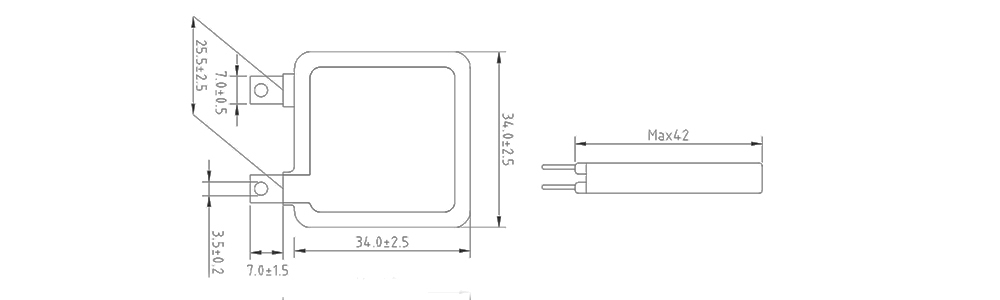

40K Rectangle
For Tmax, please refer to the data-sheet below
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage1 Vp(V)/Ip(A) |
Max. Clamping Voltage2 Vp(V)/Ip(KA) |
Max. Peak Current (8/20us) Imax×20(KA |
Max. Peak Current (8/20us) Imax×2(KA) |
Rated Power P(W) |
Max. Energy 2ms Wmax(J) |
Max. Thickness Tmax(mm) |
|---|---|---|---|---|---|---|---|---|---|
| MYL-40K201 | 200 (180~220) |
130/170 | 350/300 | 550/20 | 20 | 40 | 1.4 | 310 | 4.7 |
| MYL-40K221 | 220 (198~242) |
140/180 | 375/300 | 600/20 | 20 | 40 | 1.4 | 330 | 4.8 |
| MYL-40K241 | 240 (216~264) |
150/200 | 395/300 | 660/20 | 20 | 40 | 1.4 | 360 | 5 |
| MYL-40K361 | 360 (324~396) |
230/300 | 595/300 | 980/20 | 20 | 40 | 1.4 | 460 | 5.7 |
| MYL-40K391 | 390 (351~429) |
250/320 | 650/300 | 1090/20 | 20 | 40 | 1.4 | 490 | 5.9 |
| MYL-40K431 | 430 (387~473) |
275/350 | 710/300 | 1190/20 | 20 | 40 | 1.4 | 550 | 6.1 |
| MYL-40K471 | 470 (423~517) |
300/385 | 775/300 | 1300/20 | 20 | 40 | 1.4 | 600 | 6.3 |
| MYL-40K511 | 510 (459~561) |
320/415 | 845/300 | 1400/20 | 20 | 40 | 1.4 | 640 | 6.4 |
| MYL-40K561 | 560 (504~616) |
350/460 | 910/300 | 1530/20 | 20 | 40 | 1.4 | 720 | 6.9 |
| MYL-40K621 | 620 (558~682) |
385/505 | 1025/300 | 1650/20 | 20 | 40 | 1.4 | 800 | 7.3 |
| MYL-40K681 | 680 (612~748) |
420/560 | 1120/300 | 1800/20 | 20 | 40 | 1.4 | 910 | 7.6 |
| MYL-40K711 | 710 (639~781) |
440/590 | 1190/300 | 1900/20 | 20 | 40 | 1.4 | 950 | 7.8 |
| MYL-40K781 | 780 (702~858) |
485/640 | 1290/300 | 2050/20 | 20 | 40 | 1.4 | 1000 | 8.2 |
| MYL-40K821 | 820 (738~902) |
510/670 | 1355/300 | 2200/20 | 20 | 40 | 1.4 | 1020 | 8.5 |
| MYL-40K911 | 910 (819~1001) |
550/745 | 1500/300 | 2400/20 | 20 | 40 | 1.4 | 1040 | 9 |
| MYL-40K102 | 1000 (900~1100) |
625/825 | 1650/300 | 2650/20 | 20 | 40 | 1.4 | 1080 | 9.6 |
| MYL-40K112 | 1100 (990~1210) |
680/895 | 1815/300 | 2900/20 | 20 | 40 | 1.4 | 1100 | 10.2 |
Product Details
The MYL-40K series of surge protected plug-in varistors of disc type are designed to provide precise surge protection and voltage regulation for electronic circuits. Surge protection metal oxide varistors effectively limit voltage spikes and surges, protecting sensitive electronic components and ensuring the reliability and longevity of electronic systems.
Our surge protection components are manufactured using advanced materials and cutting-edge processes designed to provide consistent performance and reliability. The compact design and rugged construction make it suitable for use in a variety of environments, including demanding industrial environments and automotive applications.
Additionally, our unwavering commitment to quality and customer satisfaction drives us to continually improve our products and processes. We adhere to strict quality standards throughout the entire manufacturing process, from careful material selection to comprehensive product testing, ensuring that our surge protection components meet the highest quality and performance requirements.
In summary, the MYL-40K series of surge protected varistors represent the pinnacle of high performance, reliable surge protection solutions. With our focus on quality and customer satisfaction, we are confident our components will exceed your expectations and provide the precise surge protection and voltage regulation your electronic applications require.
