Varistor with High Energy MYL-32K Series
Introduce
We are pleased to introduce the MYL-32K series of surge protected disk zinc oxide varistors, which include high performance, high energy plug-in varistors. We are the top electronic component manufacturer in the country. Parts designed to meet the growing demand for reliable, high-quality surge protection solutions across industries. Our Surge Protection Disks Zinc Oxide Varistors, Varistors place a high emphasis on reliability and performance, making them the perfect choice for customers looking for a best-in-class product with exceptional performance. With a strong emphasis on reliability and performance, it is the perfect choice for customers looking for a best-in-class product with exceptional performance.
Introduce
● HIGH PERFORMANCE: The MYL-32K series of surge protected disk zinc oxide varistors, varistors and high energy plug-in varistors are engineered to provide superior performance, ensuring reliable surge protection in a variety of applications Protect.
● Control procedures are used to ensure our surge protection components exceed the highest industry standards for high quality and reliable performance.
● Applications: These components provide efficient voltage regulation and surge protection for a variety of applications including power supplies, automotive electronics and industrial equipment.
● To ensure a perfect fit for their application and enhance overall system performance, we offer customization options to meet unique customer needs.
● Because we have many years of experience manufacturing surge protection components, we have the experience to deliver best-in-class products that exceed our customers' expectations.

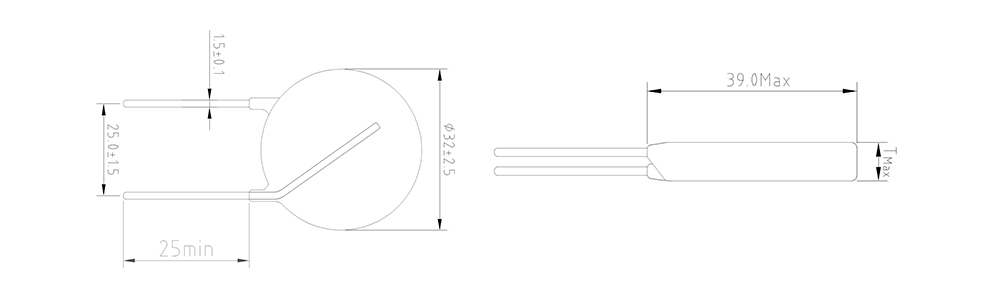

Radial leaded

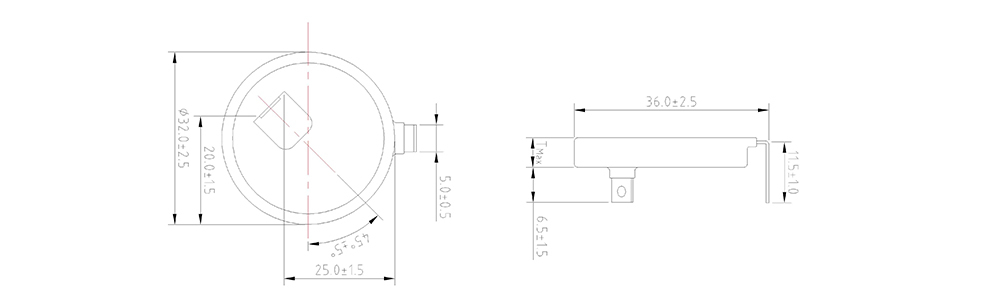

OBO

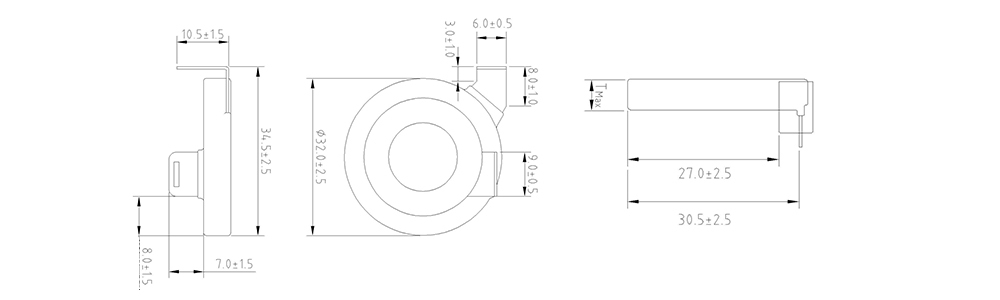

Shield Type-1

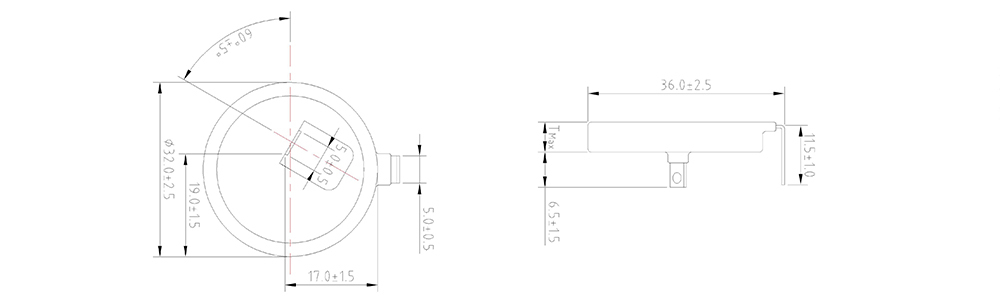

Shield Type-2
For Tmax, please refer to the data-sheet below
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage1 Vp(V)/Ip(A) |
Max. Clamping Voltage2 Vp(V)/Ip(KA) |
Max. Peak Current (8/20us) Imax×20(KA) |
Max. Peak Current (8/20us) Imax×2(KA) |
Rated Power P(W) |
Max. Energy 2ms Wmax(J) |
Max. Thickness Tmax(mm) |
| MYL-32K201 | 200 (180~220) |
130/170 | 350/200 | 550/12 | 12 | 25 | 1.2 | 210 | 4.7 |
| MYL-32K221 | 220 (198~242 |
140/180 | 375/200 | 600/12 | 12 | 25 | 1.2 | 230 | 4.8 |
| MYL-32K241 | 240 (216~264) |
150/200 | 395/200 | 660/12 | 12 | 25 | 1.2 | 240 | 5 |
| MYL-32K361 | 360 (324~396) |
230/300 | 595/200 | 980/12 | 12 | 25 | 1.2 | 325 | 5.7 |
| MYL-32K391 | 390 (351~429) |
250/320 | 650/200 | 1090/12 | 12 | 25 | 1.2 | 350 | 5.9 |
| MYL-32K431 | 430 (387~473) |
275/350 | 710/200 | 1190/12 | 12 | 25 | 1.2 | 400 | 6.1 |
| MYL-32K471 | 470 (423~517) |
300/385 | 775/200 | 1300/12 | 12 | 25 | 1.2 | 405 | 6.3 |
| MYL-32K511 | 510 (459~561) |
320/415 | 845/200 | 1400/12 | 12 | 25 | 1.2 | 405 | 6.4 |
| MYL-32K561 | 560 (504~616) |
350/460 | 910/200 | 1530/12 | 12 | 25 | 1.2 | 450 | 6.9 |
| MYL-32K621 | 620 (558~682) |
385/505 | 1025/200 | 1650/12 | 12 | 25 | 1.2 | 550 | 7.3 |
| MYL-32K681 | 680 (612~748) |
420/560 | 1120/200 | 1800/12 | 12 | 25 | 1.2 | 600 | 7.6 |
| MYL-32K711 | 710 (639~781) |
440/590 | 1190/200 | 1900/12 | 12 | 25 | 1.2 | 630 | 7.8 |
| MYL-32K781 | 780 (702~858) |
485/640 | 1290/200 | 2050/12 | 12 | 25 | 1.2 | 660 | 8.2 |
| MYL-32K821 | 820 (738~902) |
510/670 | 1355/200 | 2200/12 | 12 | 25 | 1.2 | 680 | 8.5 |
| MYL-32K911 | 910 (819~1001) |
550/745 | 1500/200 | 2400/12 | 12 | 25 | 1.2 | 700 | 9 |
| MYL-32K102 | 1000 (900~1100) |
625/825 | 1650/200 | 2650/12 | 12 | 25 | 1.2 | 730 | 9.6 |
| MYL-32K112 | 1100 (990~1210) |
680/895 | 1815/200 | 2900/12 | 12 | 25 | 1.2 | 760 | 10.2 |
Product Details
The protection and voltage regulation of electronic circuits are the characteristics of the MYL-32K series anti-surge disk zinc oxide varistor, varistor, and high-energy plug-in varistor. Spikes and surges, zinc oxide varistor surge protection sheets can protect precision electronic components and ensure the reliability and longevity of electronic systems. protection, the varistor accurately regulates voltage.
Protective components are manufactured using state-of-the-art materials and innovative manufacturing techniques to guarantee reliable and stable performance. The structure and small form factor make it suitable for use in a variety of environments, including harsh industrial environments and automotive applications.
Due to the quality of our products, our commitment to customer service is determined and untransferred, and we strive to improve our products. We have selected the best quality standards during the manufacturing process, so we can guarantee the most rigorous performance standards for our environmental protection equipment.
The highest quality, most possible wave protection solution solution is available, and the MYL -32K series wave protection system is equipped with a high-performance power input system. We mutually believe that our organization has transcendental expectations, and that we are willing to provide you with accurate battery protection for your electricity needs, so we have a very important consideration for you and your customer service.
