Varistor of Radial Leaded-20K
Introduce
As a leading manufacturer in the field of electronic components and a national high-tech enterprise, we are proud to introduce our Radial Leaded 20K Varistors. These varistors are engineered to meet the growing demand for high quality, reliable surge protection solutions that comply with global standards. With a strong focus on performance and reliability, our Radial Leaded 20K Varistors are ideal for customers looking for best-in-class products that provide superior surge protection and voltage regulation while meeting international requirements.
Main selling points
● High Performance: Radial Leaded 20K Varistors are engineered to provide superior surge protection and reliable operation in a variety of applications.
● Global compliance: Our varistors have obtained UL&CUL, VDE, CQC certification to ensure compliance with RoHS and REACH standards and meet the requirements of different countries and regions.
● Superior Quality: Our varistors undergo strict quality control measures to ensure high quality and consistent performance, meeting the highest industry standards for surge protection.
● Wide range of applications: These varistors are suitable for a wide range of applications, providing effective surge protection and voltage regulation for electronic systems.

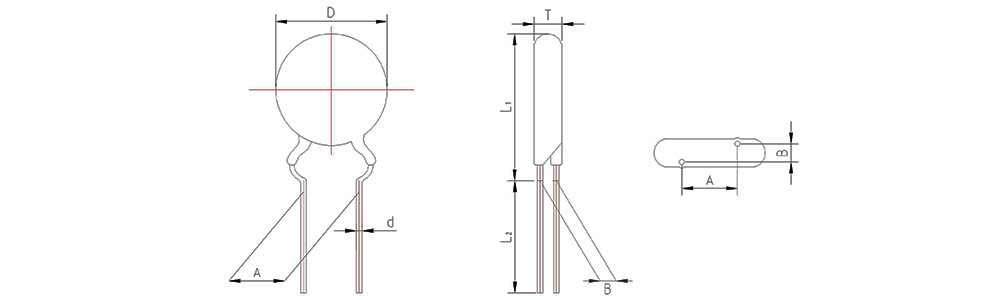

Crimp Lead
Straight Lead
| Part No. | Rated Diameter of Varistor Disk±20%(mm) | Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN23-180K (20KAC11) |
20 | 23 | 4.3 | 25 | 25 | 10 | 1.6 | 1 |
| MYN23-220K (20KAC14) |
20 | 23 | 4.4 | 25 | 25 | 10 | 1.6 | 1 |
| MYN23-270K (20KAC17) |
20 | 23 | 4.5 | 25 | 25 | 10 | 1.7 | 1 |
| MYN23-330K (20KAC20) |
20 | 23 | 4.6 | 25 | 25 | 10 | 1.8 | 1 |
| MYN23-390K (20KAC25) |
20 | 23 | 4.8 | 25 | 25 | 10 | 1.9 | 1 |
| MYN23-470K (20KAC30) |
20 | 23 | 5 | 25 | 25 | 10 | 2 | 1 |
| MYN23-560K (20KAC35) |
20 | 23 | 5.2 | 25 | 25 | 10 | 2.2 | 1 |
| MYN23-680K (20KAC40) |
20 | 23 | 5.5 | 25 | 25 | 10 | 2.4 | 1 |
| MYN23-820K (20KAC50) |
20 | 23 | 4.5 | 25 | 25 | 10 | 1.7 | 1 |
| MYN23-101K (20KAC60) |
20 | 23 | 4.6 | 25 | 25 | 10 | 1.8 | 1 |
| MYN23-121K (20KAC75) |
20 | 23 | 4.8 | 25 | 25 | 10 | 1.9 | 1 |
| MYN23-151K (20KAC95) |
20 | 23 | 5.1 | 25 | 25 | 10 | 2.1 | 1 |
| MYN23-201K (20KAC130) |
20 | 23 | 4.9 | 25 | 25 | 10 | 2 | 1 |
| MYN23-221K (20KAC140) |
20 | 23 | 5 | 25 | 25 | 10 | 2.1 | 1 |
| MYN23-241K (20KAC150) |
20 | 23 | 5.2 | 25 | 25 | 10 | 2.1 | 1 |
| MYN23-271K (20KAC175) |
20 | 23 | 5.3 | 25 | 25 | 10 | 2.2 | 1 |
| MYN23-331K (20KAC210) |
20 | 23 | 5.7 | 25 | 25 | 10 | 2.5 | 1 |
| MYN23-361K (20KAC230) |
20 | 23 | 5.8 | 25 | 25 | 10 | 2.6 | 1 |
| MYN23-391K (20KAC250) |
20 | 23 | 6 | 25 | 25 | 10 | 2.7 | 1 |
| Part No. | Rated Diameter of Varistor Disk±20%(mm) | Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN23-431K (20KAC275) |
20 | 23 | 6.2 | 25 | 25 | 10 | 2.8 | 1 |
| MYN23-471K (20KAC300) |
20 | 23 | 6.4 | 25 | 25 | 10 | 3 | 1 |
| MYN23-511K (20KAC320) |
20 | 23 | 6.7 | 25 | 25 | 10 | 3.1 | 1 |
| MYN23-561K (20KAC350) |
20 | 23 | 7 | 25 | 25 | 10 | 3.3 | 1 |
| MYN23-621K (20KAC385) |
20 | 24 | 7.3 | 28 | 25 | 10 | 3.5 | 1 |
| MYN23-681K (20KAC420) |
20 | 24 | 7.6 | 28 | 25 | 10 | 3.7 | 1 |
| MYN23-751K (20KAC460) |
20 | 24 | 8 | 28 | 25 | 10 | 3.9 | 1 |
| MYN23-781K (20KAC485) |
20 | 24 | 8.2 | 28 | 25 | 10 | 4 | 1 |
| MYN23-821K (20KAC510) |
20 | 24 | 8.4 | 28 | 25 | 10 | 4.2 | 1 |
| MYN23-911K (20KAC550) |
20 | 24 | 8.9 | 28 | 25 | 10 | 4.5 | 1 |
| MYN23-102K (20KAC625) |
20 | 24 | 9.4 | 28 | 25 | 10 | 4.8 | 1 |
| MYN23-112K (20KAC680) |
20 | 24 | 10 | 28 | 25 | 10 | 5.2 | 1 |
| MYN23-182K (20KAC1000) |
20 | 24 | 14 | 28 | 25 | 10 | 7.6 | 1 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN23-180K (20KAC11) |
18 (16~20) |
11/14 | 36/20 | 3000 | 2000 | 0.2 | 13 | 12 | 40000 |
| MYN23-220K (20KAC14) |
22 (20~24) |
14/18 | 43/20 | 3000 | 2000 | 0.2 | 16 | 14 | 30000 |
| MYN23-270K (20KAC17) |
27 (24~30) |
17/22 | 53/20 | 3000 | 2000 | 0.2 | 19 | 17 | 24500 |
| MYN23-330K (20KAC20) |
33 (30-36) |
20/26 | 65/20 | 3000 | 2000 | 0.2 | 24 | 21 | 20000 |
| MYN23-390K (20KAC25) |
39 (35~43) |
25/31 | 77/20 | 3000 | 2000 | 0.2 | 28 | 25 | 13800 |
| MYN23-470K (20KAC30) |
47 (42~52) |
30/38 | 93/20 | 3000 | 2000 | 0.2 | 34 | 30 | 13500 |
| MYN23-560K (20KAC35) |
56 (50~62) |
35/45 | 110/20 | 3000 | 2000 | 0.2 | 41 | 36 | 12200 |
| MYN23-680K (20KAC40) |
68 (61~75) |
40/56 | 135/20 | 3000 | 2000 | 0.2 | 49 | 44 | 11500 |
| MYN23-820K (20KAC50) |
82 (74~90) |
50/65 | 135/100 | 10000 | 7000 | 1 | 56 | 40 | 7500 |
| MYN23-101K (20KAC60) |
100 (90~110) |
60/85 | 165/100 | 10000 | 7000 | 1 | 70 | 50 | 6500 |
| MYN23-121K (20KAC75) |
120 (108~132) |
75/100 | 200/100 | 10000 | 7000 | 1 | 85 | 60 | 5500 |
| MYN23-151K (20KAC95) |
150 (135~165) |
95/125 | 250/100 | 10000 | 7000 | 1 | 106 | 75 | 4500 |
| MYN23-201K (20KAC130) |
200 (180~220) |
130/170 | 340/100 | 10000 | 7000 | 1 | 140 | 100 | 1700 |
| MYN23-221K (20KAC140) |
220 (198~242) |
140/180 | 360/100 | 10000 | 7000 | 1 | 155 | 110 | 1600 |
| MYN23-241K (20KAC150) |
240 (216~264) |
150/200 | 395/100 | 10000 | 7000 | 1 | 168 | 120 | 1500 |
| MYN23-271K (20KAC175) |
270 (243~297) |
175/225 | 455/100 | 10000 | 7000 | 1 | 190 | 135 | 1300 |
| MYN23-331K (20KAC210) |
330 (297~363) |
210/270 | 545/100 | 10000 | 7000 | 1 | 228 | 160 | 1100 |
| MYN23-361K (20KAC230) |
360 (324~396) |
230/300 | 595/100 | 10000 | 7000 | 1 | 255 | 180 | 1100 |
| MYN23-391K (20KAC250) |
390 (351~429) |
250/320 | 650/100 | 10000 | 7000 | 1 | 275 | 195 | 1100 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN23-431K (20KAC275) |
430 (387~473) |
275/350 | 710/100 | 10000 | 7000 | 1 | 303 | 215 | 1000 |
| MYN23-471K (20KAC300) |
470 (423~517) |
300/385 | 775/100 | 10000 | 7000 | 1 | 350 | 250 | 900 |
| MYN23-511K (20KAC320) |
510 (459~561) |
320/410 | 845/100 | 10000 | 7000 | 1 | 382 | 273 | 800 |
| MYN23-561K (20KAC350) |
560 (504~616) |
350/460 | 910/100 | 10000 | 7000 | 1 | 382 | 273 | 700 |
| MYN23-621K (20KAC385) |
620 (558~682) |
385/505 | 1025/100 | 10000 | 7000 | 1 | 382 | 273 | 700 |
| MYN23-681K (20KAC420 |
680 (612~748) |
420/560 | 1120/100 | 10000 | 7000 | 1 | 382 | 273 | 650 |
| MYN23-751K (20KAC460) |
750 (675~825) |
460/615 | 1240/100 | 10000 | 7000 | 1 | 420 | 300 | 600 |
| MYN23-781K (20KAC485) |
780 (702~858) |
485/640 | 1290/100 | 10000 | 7000 | 1 | 440 | 312 | 560 |
| MYN23-821K (20KAC510) |
820 (738~902) |
510/670 | 1355/100 | 10000 | 7000 | 1 | 460 | 325 | 530 |
| MYN23-911K (20KAC550) |
910 (819~1001) |
550/745 | 1500/100 | 10000 | 7000 | 1 | 510 | 360 | 500 |
| MYN23-102K (20KAC625) |
1000 (900~1100) |
625/825 | 1650/100 | 10000 | 7000 | 1 | 565 | 400 | 450 |
| MYN23-112K (20KAC680) |
1100 (990~1210) |
680/895 | 1815/100 | 10000 | 7000 | 1 | 620 | 440 | 400 |
| MYN23-182K (20KAC1000) |
1800 (1620~1980) |
1000/1465 | 2970/100 | 10000 | 7000 | 1 | 1020 | 720 | 250 |
