Varistor of Radial Leaded-14K
Introduce
As a top electrical component manufacturer and a national key high-tech enterprise, we are pleased to introduce our 14K radial leaded varistor. Designed to meet the growing demand for reliable, high-quality surge protection systems that comply with international standards. This is the perfect choice for customers looking for a top-quality product that meets global standards for voltage regulation and superior surge protection.
Main selling points
● HIGH PERFORMANCE: Radial-lead 14K varistors are engineered to provide superior surge protection and reliable operation in a variety of applications.
● Global compliance: Our varistors have obtained UL&CUL, VDE, CQC certification to ensure compliance with RoHS and REACH standards and meet the requirements of different countries and regions.
● Superior Quality: Our varistors undergo strict quality control measures to ensure high quality and consistent performance, meeting the highest industry standards for surge protection.
● Wide range of applications: These varistors are suitable for a wide range of applications, providing effective surge protection and voltage regulation for electronic systems.

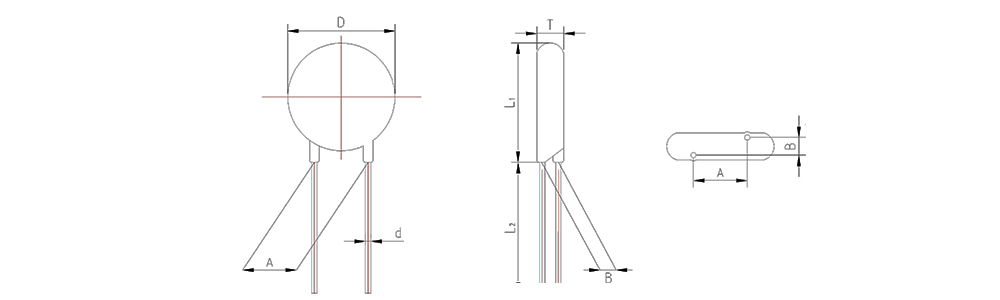

Crimp Lead
Straight Lead
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN15-180K (14KAC11) |
14 | 15.5 | 3.9 | 19 | 25 | 7.5 | 1.4 | 0.8 |
| MYN15-220K (14KAC14) |
14 | 15.5 | 4 | 19 | 25 | 7.5 | 1.4 | 0.8 |
| MYN15-270K (14KAC17) |
14 | 15.5 | 4.1 | 19 | 25 | 7.5 | 1.5 | 0.8 |
| MYN15-330K (14KAC20) |
14 | 15.5 | 4.2 | 19 | 25 | 7.5 | 1.6 | 0.8 |
| MYN15-390K (14KAC25) |
14 | 15.5 | 4.4 | 19 | 25 | 7.5 | 1.7 | 0.8 |
| MYN15-470K (14KAC30) |
14 | 15.5 | 4.6 | 19 | 25 | 7.5 | 1.8 | 0.8 |
| MYN15-560K (14KAC35) |
14 | 15.5 | 4.8 | 19 | 25 | 7.5 | 2 | 0.8 |
| MYN15-680K (14KAC40) |
14 | 15.5 | 5.1 | 19 | 25 | 7.5 | 2.2 | 0.8 |
| MYN15-820K (14KAC50) |
14 | 15.5 | 4.1 | 19 | 25 | 7.5 | 1.5 | 0.8 |
| MYN15-101K (14KAC60) |
14 | 15.5 | 4.2 | 19 | 25 | 7.5 | 1.6 | 0.8 |
| MYN15-121K (14KAC75) |
14 | 15.5 | 4.4 | 19 | 25 | 7.5 | 1.7 | 0.8 |
| MYN15-151K (14KAC95) |
14 | 15.5 | 4.7 | 19 | 25 | 7.5 | 1.9 | 0.8 |
| MYN15-201K (14KAC130) |
14 | 15.5 | 4.5 | 19 | 25 | 7.5 | 1.8 | 0.8 |
| MYN15-221K (14KAC140) |
14 | 15.5 | 4.6 | 19 | 25 | 7.5 | 1.9 | 0.8 |
| MYN15-241K (14KAC150) |
14 | 15.5 | 4.8 | 19 | 25 | 7.5 | 1.9 | 0.8 |
| MYN15-271K (14KAC175) |
14 | 15.5 | 4.9 | 19 | 25 | 7.5 | 2 | 0.8 |
| MYN15-331K (14KAC210) |
14 | 15.5 | 5.3 | 19 | 25 | 7.5 | 2.3 | 0.8 |
| MYN15-361K (14KAC230) |
14 | 15.5 | 5.4 | 19 | 25 | 7.5 | 2.4 | 0.8 |
| MYN15-391K (14KAC250) |
14 | 15.5 | 5.6 | 19 | 25 | 7.5 | 2.5 | 0.8 |
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN15-431K (14KAC275) |
14 | 15.5 | 5.8 | 19 | 25 | 7.5 | 2.6 | 0.8 |
| MYN15-471K (14KAC300) |
14 | 15.5 | 6 | 19 | 25 | 7.5 | 2.8 | 0.8 |
| MYN15-511K (14KAC320) |
14 | 15.5 | 6.3 | 19 | 25 | 7.5 | 2.9 | 0.8 |
| MYN15-561K (14KAC350) |
14 | 15.5 | 6.6 | 19 | 25 | 7.5 | 3.1 | 0.8 |
| MYN15-621K (14KAC385) |
14 | 17 | 6.9 | 21 | 25 | 7.5 | 3.3 | 0.8 |
| MYN15-681K (14KAC420) |
14 | 17 | 7.2 | 21 | 25 | 7.5 | 3.5 | 0.8 |
| MYN15-751K (14KAC460) |
14 | 17 | 7.6 | 21 | 25 | 7.5 | 3.7 | 0.8 |
| MYN15-781K (14KAC485) |
14 | 17 | 7.8 | 21 | 25 | 7.5 | 3.8 | 0.8 |
| MYN15-821K(14KAC510) | 14 | 17 | 8 | 21 | 25 | 7.5 | 4 | 0.8 |
| MYN15-911K (14KAC550) |
14 | 17 | 8.5 | 21 | 25 | 7.5 | 4.3 | 0.8 |
| MYN15-102K (14KAC625) |
14 | 17 | 9 | 21 | 25 | 7.5 | 4.6 | 0.8 |
| MYN15-112K (14KAC680) |
14 | 17 | 9.6 | 21 | 25 | 7.5 | 5 | 0.8 |
| MYN15-182K (14KAC1000) |
14 | 17 | 13.6 | 21 | 25 | 7.5 | 7.4 | 0.8 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN15-180K (14KAC11) |
18 (16~20) |
11/14 | 36/10 | 2000 | 1000 | 0.1 | 5.2 | 4.3 | 25000 |
| MYN15-220K (14KAC14) |
22 (20~24) |
14/18 | 43/10 | 2000 | 1000 | 0.1 | 6.3 | 5.3 | 20000 |
| MYN15-270K (14KAC17) |
27 (24~30) |
17/22 | 53/10 | 2000 | 1000 | 0.1 | 7.8 | 6.5 | 16000 |
| MYN15-330K (14KAC20) |
33 (30-36) |
20/26 | 65/10 | 2000 | 1000 | 0.1 | 9.5 | 7.9 | 12200 |
| MYN15-390K (14KAC25) |
39 (35~43) |
25/31 | 77/10 | 2000 | 1000 | 0.1 | 11 | 9.4 | 7000 |
| MYN15-470K (14KAC30) |
47 (42~52) |
30/38 | 93/10 | 2000 | 1000 | 0.1 | 14 | 11 | 6750 |
| MYN15-560K (14KAC35) |
56 (50~62) |
35/45 | 110/10 | 2000 | 1000 | 0.1 | 16 | 13 | 6500 |
| MYN15-680K (14KAC40) |
68 (61~75) |
40/56 | 135/10 | 2000 | 1000 | 0.1 | 20 | 16 | 5500 |
| MYN15-820K (14KAC50) |
82 (74~90) |
50/65 | 135/50 | 6000 | 5000 | 0.6 | 28 | 20 | 3700 |
| MYN15-101K (14KAC60) |
100 (90~110) |
60/85 | 165/50 | 6000 | 5000 | 0.6 | 35 | 25 | 3200 |
| MYN15-121K (14KAC75) |
120 (108~132) |
75/100 | 200/50 | 6000 | 5000 | 0.6 | 42 | 30 | 2700 |
| MYN15-151K (14KAC95) |
150 (135~165) |
95/125 | 250/50 | 6000 | 5000 | 0.6 | 53 | 37.5 | 2200 |
| MYN15-201K (14KAC130) |
200 (180~220) |
130/170 | 340/50 | 6000 | 5000 | 0.6 | 70 | 50 | 770 |
| MYN15-221K (14KAC140) |
220 (198~242) |
140/180 | 360/50 | 6000 | 5000 | 0.6 | 78 | 55 | 740 |
| MYN15-241K (14KAC150) |
240 (216~264) |
150/200 | 395/50 | 6000 | 5000 | 0.6 | 84 | 60 | 700 |
| MYN15-271K (14KAC175) |
270 (243~297) |
175/225 | 455/50 | 6000 | 5000 | 0.6 | 99 | 70 | 640 |
| MYN15-331K (14KAC210) |
330 (297~363) |
210/270 | 545/50 | 6000 | 5000 | 0.6 | 115 | 80 | 580 |
| MYN15-361K (14KAC230) |
360 (324~396) |
230/300 | 595/50 | 6000 | 5000 | 0.6 | 130 | 90 | 540 |
| MYN15-391K (14KAC250) |
390 (351~429) |
250/320 | 650/50 | 6000 | 5000 | 0.6 | 140 | 100 | 500 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN15-431K (14KAC275) |
430 (387~473) |
275/350 | 710/50 | 6000 | 5000 | 0.6 | 155 | 110 | 450 |
| MYN15-471K (14KAC300) |
470 (423~517) |
300/385 | 775/50 | 6000 | 5000 | 0.6 | 175 | 125 | 400 |
| MYN15-511K (14KAC320) |
510 (459~561) |
320/410 | 845/50 | 6000 | 5000 | 0.6 | 190 | 136 | 350 |
| MYN15-561K (14KAC350) |
560 (504~616) |
350/460 | 910/50 | 6000 | 5000 | 0.6 | 190 | 136 | 340 |
| MYN15-621K (14KAC385) |
620 (558~682) |
385/505 | 1025/50 | 6000 | 5000 | 0.6 | 190 | 136 | 330 |
| MYN15-681K (14KAC420) |
680 (612~748) |
420/560 | 1120/50 | 6000 | 5000 | 0.6 | 190 | 136 | 320 |
| MYN15-751K (14KAC460) |
750 (675~825) |
460/615 | 1240/50 | 6000 | 5000 | 0.6 | 210 | 150 | 310 |
| MYN15-781K (14KAC485) |
780 (702~858) |
485/640 | 1290/50 | 6000 | 5000 | 0.6 | 220 | 160 | 300 |
| MYN15-821K (14KAC510) |
820 (738~902) |
510/670 | 1355/50 | 6000 | 5000 | 0.6 | 235 | 165 | 280 |
| MYN15-911K (14KAC550) |
910 (819~1001) |
550/745 | 1500/50 | 6000 | 5000 | 0.6 | 255 | 180 | 250 |
| MYN15-102K (14KAC625) |
1000 (900~1100) |
625/825 | 1650/50 | 6000 | 5000 | 0.6 | 280 | 200 | 230 |
| MYN15-112K (14KAC680) |
1100 (990~1210) |
680/895 | 1815/50 | 6000 | 5000 | 0.6 | 310 | 220 | 210 |
| MYN15-182K (14KAC1000) |
1800 (1620~1980) |
1000/1465 | 2970/50 | 6000 | 5000 | 0.6 | 510 | 360 | 120 |
Product Details
For precise surge protection and voltage regulation for electronic circuits, we offer our Radial Leaded 14K Varistors. By efficiently reducing voltage spikes and surges, varistors safeguard delicate electronic components and prolong the dependability durability of electronic systems. These varistors satisfy international standards and are appropriate for a variety of applications since they provide voltage regulation and surge protection.
Modern materials and state-of-the-art manufacturing techniques are used in the production of our varistors to provide dependable and constant performance. The radial leaded 14K design offers a dependable answer to surge protection requirements, enabling simple installation and integration into electronic circuits.
Furthermore, we are constantly striving to enhance our procedures and goods due to our unshakable dedication to quality and client pleasure. Our varistors meet the strictest quality and performance criteria because we follow stringent quality standards throughout the whole manufacturing process, from thorough product testing to cautious material selection.
In conclusion, our radial-lead 14K varistors are the best available option for dependable, high-performance surge protection that satisfies international standards. Since we are dedicated to providing high-quality products that satisfy international standards, we are sure that our varistors will surpass your expectations and precisely safeguard your electronic applications from surges and regulate voltage while doing so.
