Varistor of Radial Leaded-10K
Introduce
As a top manufacturer of electronic components and a top producer of national key high-tech enterprises, we are pleased to introduce our Radial Leaded 10K Varistors. As an electronic component and national key high-tech enterprise, we are pleased to introduce our radial leaded 10K varistor. These varistors are designed to meet the growing demand for reliable, high-quality surge suppression solutions in safety-critical applications. There is a growing demand for reliable, high-quality surge suppression solutions in safety-critical applications. With high priority on performance and reliability, our Radial Leaded 10K Varistors are the performance and choice of customers looking for best-in-class solutions for superior voltage regulation and surge suppression in critical electronic systems. Reliability, the perfect choice for customers looking for best-in-class solutions that enable excellent voltage regulation and surge suppression in critical electronic systems.
Main selling points
● HIGH PERFORMANCE: Radial-lead 10K varistors are engineered to provide superior surge suppression and reliable operation in safety-critical applications.
● Superior Quality: Our varistors undergo strict quality control measures to ensure high quality and consistent performance, meeting the highest industry standards for safety-critical components.
● ISO Certified Facility: Our products are manufactured in ISO-9001 and ISO-14001 certified facilities ensuring stability, reliability and environmental responsibility.
● Broad range of applications: These varistors are suitable for a variety of safety-critical applications, providing effective surge suppression and voltage regulation for critical electronic systems.
● Expertise and Experience: With many years of varistor manufacturing experience, we have the expertise to deliver best-in-class products that exceed customer expectations in safety-critical applications.

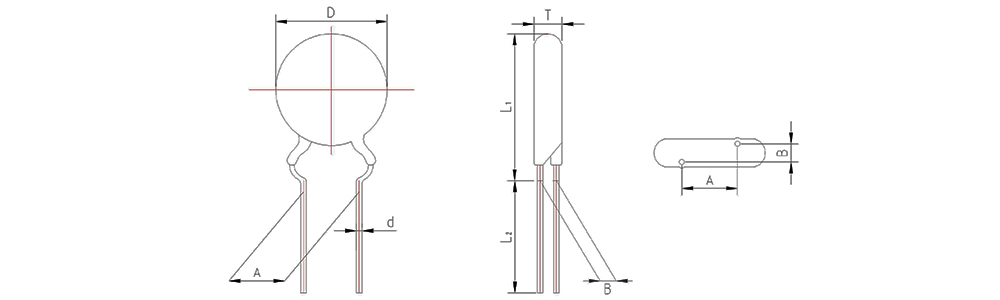

Crimp Lead
Straight Lead
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN12-180K (10KAC11) |
10 | 12.2 | 3.9 | 15 | 25 | 7.5 | 1.4 | 0.8 |
| MYN12-220K (10KAC14) |
10 | 12.2 | 4 | 15 | 25 | 7.5 | 1.4 | 0.8 |
| MYN12-270K (10KAC17) |
10 | 12.2 | 4.1 | 15 | 25 | 7.5 | 1.5 | 0.8 |
| MYN12-330K (10KAC20) |
10 | 12.2 | 4.2 | 15 | 25 | 7.5 | 1.6 | 0.8 |
| MYN12-390K (10KAC25) |
10 | 12.2 | 4.4 | 15 | 25 | 7.5 | 1.7 | 0.8 |
| MYN12-470K (10KAC30) |
10 | 12.2 | 4.6 | 15 | 25 | 7.5 | 1.8 | 0.8 |
| MYN12-560K (10KAC35) |
10 | 12.2 | 4.8 | 15 | 25 | 7.5 | 2 | 0.8 |
| MYN12-680K (10KAC40) |
10 | 12.2 | 5.1 | 15 | 25 | 7.5 | 2.2 | 0.8 |
| MYN12-820K (10KAC50) |
10 | 12.2 | 4.1 | 15 | 25 | 7.5 | 1.5 | 0.8 |
| MYN12-101K (10KAC60) |
10 | 12.2 | 4.2 | 15 | 25 | 7.5 | 1.6 | 0.8 |
| MYN12-121K (10KAC75) |
10 | 12.2 | 4.4 | 15 | 25 | 7.5 | 1.7 | 0.8 |
| MYN12-151K (10KAC95) |
10 | 12.2 | 4.7 | 15 | 25 | 7.5 | 1.9 | 0.8 |
| MYN12-201K (10KAC130) |
10 | 12.2 | 4.5 | 15 | 25 | 7.5 | 1.8 | 0.8 |
| MYN12-221K (10KAC140) |
10 | 12.2 | 4.6 | 15 | 25 | 7.5 | 1.9 | 0.8 |
| MYN12-241K (10KAC150) |
10 | 12.2 | 4.8 | 15 | 25 | 7.5 | 1.9 | 0.8 |
| MYN12-271K (10KAC175) |
10 | 12.2 | 4.9 | 15 | 25 | 7.5 | 2 | 0.8 |
| MYN12-331K (10KAC210) |
10 | 12.2 | 5.3 | 15 | 25 | 7.5 | 2.3 | 0.8 |
| MYN12-361K (10KAC230) |
10 | 12.2 | 5.4 | 15 | 25 | 7.5 | 2.4 | 0.8 |
| MYN12-391K (10KAC250) |
10 | 12.2 | 5.6 | 15 | 25 | 7.5 | 2.5 | 0.8 |
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN12-431K (10KAC275) |
10 | 12.2 | 5.8 | 15 | 25 | 7.5 | 2.6 | 0.8 |
| MYN12-471K (10KAC300) |
10 | 12.2 | 6 | 15 | 25 | 7.5 | 2.8 | 0.8 |
| MYN12-511K (10KAC320) |
10 | 12.2 | 6.3 | 15 | 25 | 7.5 | 2.9 | 0.8 |
| MYN12-561K (10KAC350) |
10 | 12.2 | 6.6 | 15 | 25 | 7.5 | 3.1 | 0.8 |
| MYN12-621K (10KAC385) |
10 | 13.5 | 6.9 | 17 | 25 | 7.5 | 3.3 | 0.8 |
| MYN12-681K (10KAC420) |
10 | 13.5 | 7.2 | 17 | 25 | 7.5 | 3.5 | 0.8 |
| MYN12-751K (10KAC460) |
10 | 13.5 | 7.6 | 17 | 25 | 7.5 | 3.7 | 0.8 |
| MYN12-781K (10KAC485) |
10 | 13.5 | 7.8 | 17 | 25 | 7.5 | 3.8 | 0.8 |
| MYN12-821K (10KAC510) |
10 | 13.5 | 8 | 17 | 25 | 7.5 | 4 | 0.8 |
| MYN12-911K (10KAC550) |
10 | 13.5 | 8.5 | 17 | 25 | 7.5 | 4.3 | 0.8 |
| MYN12-102K (10KAC625) |
10 | 13.5 | 9 | 17 | 25 | 7.5 | 4.6 | 0.8 |
| MYN12-112K (10KAC680) |
10 | 13.5 | 9.6 | 17 | 25 | 7.5 | 5 | 0.8 |
| MYN12-182K (10KAC1000) |
10 | 13.5 | 13.6 | 17 | 25 | 7.5 | 7.4 | 0.8 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN12-180K (10KAC11) |
18 (16~20) |
11/14 | 36/5 | 1000 | 500 | 0.05 | 2.6 | 2.2 | 16000 |
| MYN12-220K (10KAC14) |
22 (20~24) |
14/18 | 43/5 | 1000 | 500 | 0.05 | 3.2 | 2.6 | 11000 |
| MYN12-270K (10KAC17) |
27 (24~30) |
17/22 | 53/5 | 1000 | 500 | 0.05 | 3.9 | 3.2 | 8000 |
| MYN12-330K (10KAC20) |
33 (30-36) |
20/26 | 65/5 | 1000 | 500 | 0.05 | 4.8 | 4 | 6300 |
| MYN12-390K (10KAC25) |
39 (35~43) |
25/31 | 77/5 | 1000 | 500 | 0.05 | 5.6 | 4.7 | 5200 |
| MYN12-470K (10KAC30) |
47 (42~52) |
30/38 | 93/5 | 1000 | 500 | 0.05 | 6.8 | 5.6 | 4600 |
| MYN12-560K (10KAC35) |
56 (50~62) |
35/45 | 110/5 | 1000 | 500 | 0.05 | 8.1 | 6.7 | 3750 |
| MYN12-680K (10KAC40) |
68 (61~75) |
40/56 | 135/5 | 1000 | 500 | 0.05 | 9.8 | 8.2 | 2800 |
| MYN12-820K (10KAC50) |
82 (74~90) |
50/65 | 135/25 | 3500 | 2500 | 0.4 | 14 | 10 | 2000 |
| MYN12-101K (10KAC60) |
100 (90~110) |
60/85 | 165/25 | 3500 | 2500 | 0.4 | 17 | 12 | 1700 |
| MYN12-121K (10KAC75) |
120 (108~132) |
75/100 | 200/25 | 3500 | 2500 | 0.4 | 20 | 14.5 | 1400 |
| MYN12-151K (10KAC95) |
150 (135~165) |
95/125 | 250/25 | 3500 | 2500 | 0.4 | 25 | 18 | 1100 |
| MYN12-201K (10KAC130) |
200 (180~220) |
130/170 | 340/25 | 3500 | 2500 | 0.4 | 35 | 25 | 430 |
| MYN12-221K (10KAC140) |
220 (198~242) |
140/180 | 360/25 | 3500 | 2500 | 0.4 | 39 | 27.5 | 410 |
| MYN12-241K (10KAC150) |
240 (216~264) |
150/200 | 395/25 | 3500 | 2500 | 0.4 | 42 | 30 | 380 |
| MYN12-271K (10KAC175) |
270 (243~297) |
175/225 | 455/25 | 3500 | 2500 | 0.4 | 49 | 35 | 350 |
| MYN12-331K (10KAC210) |
330 (297~363) |
210/270 | 545/25 | 3500 | 2500 | 0.4 | 58 | 42 | 300 |
| MYN12-361K (10KAC230 |
360 (324~396) |
230/300 | 595/25 | 3500 | 2500 | 0.4 | 65 | 45 | 300 |
| MYN12-391K (10KAC250) |
390 (351~429) |
250/320 | 650/25 | 3500 | 2500 | 0.4 | 70 | 50 | 300 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN12-431K (10KAC275) |
430 (387~473) |
275/350 | 710/25 | 3500 | 2500 | 0.4 | 80 | 55 | 270 |
| MYN12-471K (10KAC300) |
470 (423~517) |
300/385 | 775/25 | 3500 | 2500 | 0.4 | 85 | 60 | 230 |
| MYN12-511K (10KAC320) |
510 (459~561) |
320/410 | 845/25 | 3500 | 2500 | 0.4 | 92 | 67 | 210 |
| MYN12-561K (10KAC350) |
560 (504~616) |
350/460 | 910/25 | 3500 | 2500 | 0.4 | 92 | 67 | 200 |
| MYN12-621K (10KAC385) |
620 (558~682) |
385/505 | 1025/25 | 3500 | 2500 | 0.4 | 92 | 67 | 190 |
| MYN12-681K (10KAC420) |
680 (612~748) |
420/560 | 1120/25 | 3500 | 2500 | 0.4 | 92 | 67 | 170 |
| MYN12-751K (10KAC460) |
750 (675~825) |
460/615 | 1240/25 | 3500 | 2500 | 0.4 | 100 | 70 | 160 |
| MYN12-781K (10KAC485) |
780 (702~858) |
485/640 | 1290/25 | 3500 | 2500 | 0.4 | 105 | 75 | 150 |
| MYN12-821K (10KAC510) |
820 (738~902) |
510/670 | 1355/25 | 3500 | 2500 | 0.4 | 110 | 80 | 140 |
| MYN12-911K (10KAC550) |
910 (819~1001) |
550/745 | 1500/25 | 3500 | 2500 | 0.4 | 130 | 90 | 120 |
| MYN12-102K (10KAC625) |
1000 (900~1100) |
625/825 | 1650/25 | 3500 | 2500 | 0.4 | 140 | 100 | 110 |
| MYN12-112K (10KAC680 |
1100 (990~1210) |
680/895 | 1815/25 | 3500 | 2500 | 0.4 | 155 | 110 | 110 |
| MYN12-182K (10KAC1000) |
1800 (1620~1980) |
1000/1465 | 2970/25 | 3500 | 2500 | 0.4 | 247 | 183 | 70 |
Product Details
Used to precisely control voltage and reduce surges in electronic circuits, especially in applications where safety is a top priority. spikes and surges, protecting precision electronic components and ensuring the reliability and safety of critical electronic systems. For a variety of applications where safety is critical, these varistors provide voltage regulation and surge suppression capabilities. Safety is paramount and these varistors provide voltage regulation and surge suppression.
Our varistors are produced using advanced materials and state-of-the-art manufacturing techniques to provide reliable and constant performance. The radial leaded 10K design provides a reliable solution for surge suppression requirements in safety critical components, is trustworthy and easy to install and integrate into electronic circuits. Meets surge suppression requirements for safety-critical components and is easily integrated into electronic circuits.
Due to our unwavering dedication to quality and customer satisfaction, we continually strive to improve our procedures and products. To ensure that our varistors meet the highest quality and performance standards for safety-critical applications, we adhere to strict quality standards throughout the entire manufacturing process, from careful material selection to thorough product testing.
All in all, our radial-lead 10K varistors are the best choice for reliable, high-performance surge suppression in safety-critical applications. Our varistors will exceed your expectations and provide the precise voltage regulation and surge suppression needed for your safety-critical electronic applications because we are committed to quality and customer satisfaction.
